Low Air Pressure CIR90 90mm 100mm 110mm DTH Bits For Rock Drilling
SOLLROC is a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customers all over the world, such as France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.
Product specifications:
DTH hammer type | CIR90 |
| Length(less bit) | 795mm |
| Weight(less bit) | 22.0kg |
| External diameter | Φ80mm |
| Bit shank IR3.5" | CIR90/QT90 |
| Hole range(mm) | Φ90-130 |
| Connection thread | male T48*10*2 |
| Working pressure | 0.5-0.7Mpa |
| Impact rate | 820rpm(6bar) |
Recommended
Rotation speed | |
Air consumption | 10bar | 120L/s |
| 18bar | 160L/s |
| 24bar | |
Bit Face Shape Selection:
1. Drop Center Bit
2. Concave Face
3. Convex Face
4. Double Gauge Face
5. Flat Face Bit
Carbide Button Shape Selection:
1. Domed/Round Button
2. Parabolic/Semi-Ballistic Buttons
3. Ballistic Button
4. Sharp Button
5. Flat Button
Available series of DTH hammer:
(1) high pressure
SD series hammer: SD 5, SD 6, SD 8, SD 12.
QL series hammer: QL 30, QL 40, QL 50, QL 60, QL 80.
DHD series hammers: DHD 3.5, DHD 340. DHD 350, DHD 360, DHD380.
Mission series hammers: M30, M40, M50, M60, M80.
Cop series hammers: Cop 32/34, Cop 42/44, Cop 54/64.
NUMA series hammers: Numa100, Numa120, Numa125
(2) medium pressure
BR Series: BR1, BR2, BR3
HD25A
(3) low air pressure:
CIR Series: CIR55, CIR60, CIR70, CIR80, CIR90, CIR100, CIR110, CIR150, CIR170, etc.
J Series: J60C, J70C, J80B, J100B, J150B, J170B, J200B, etc.

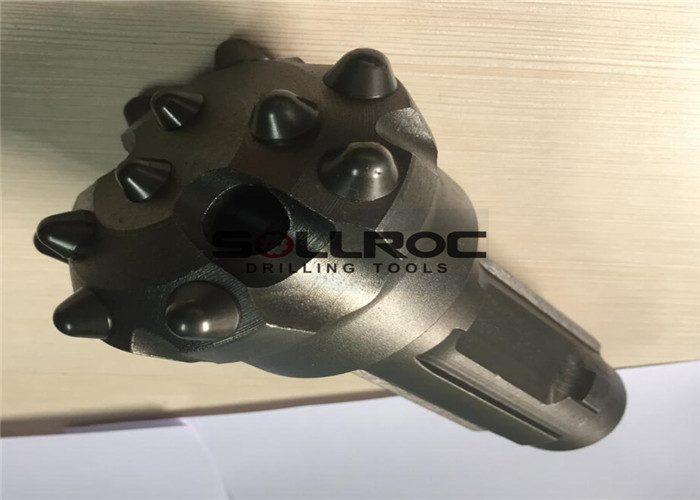

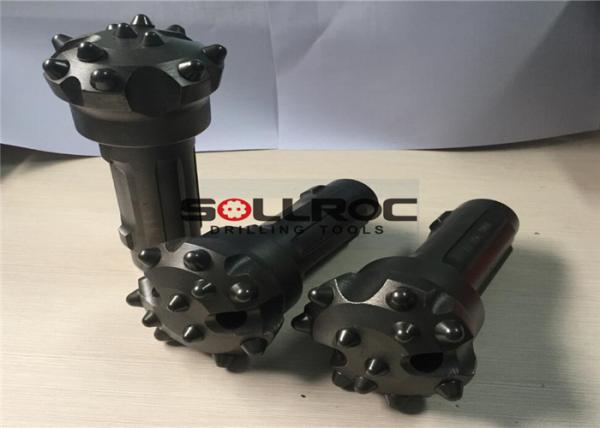

Product photos
